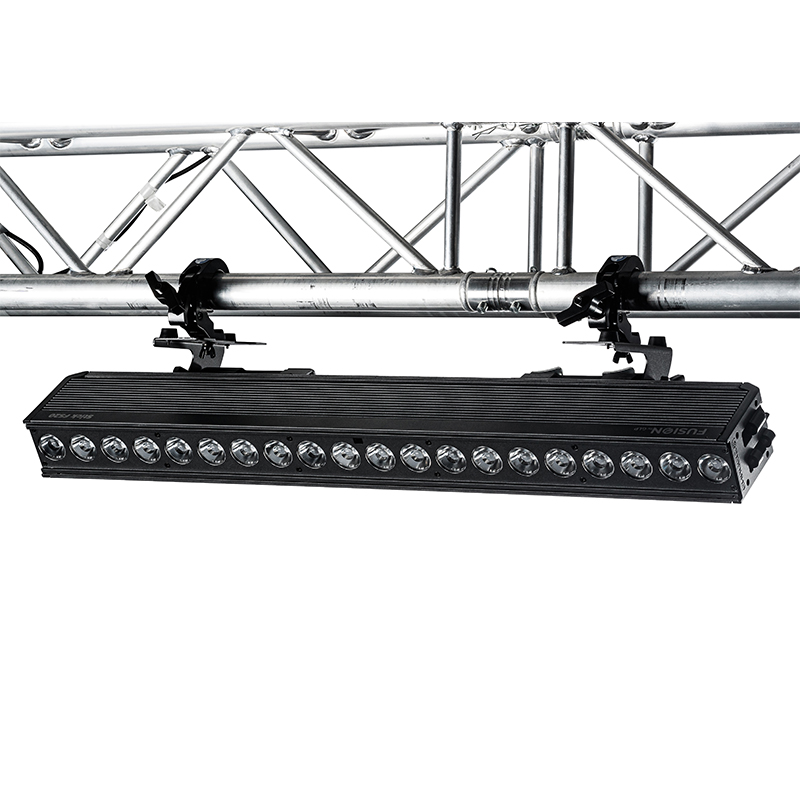

fusion stick 20

The FUSION Stick  has the ability to easily add various beam angle filters, including asymmetrical options, producing a perfectly homogeneous light output. The Stick features 20°, 40°, 60° and 60°x10° diffuser plates which can be fixed to the front of the fixture. With these diffuser plates attached the Stick outputs enough power to produce light beams that cut through modern stage designs.

As with all FUSION by GLP fixtures the FUSION Stick fixtures feature an IP rating of 65, allowing for full outdoor use regardless of poor weather conditions. To that end the Stick features a fanless design, which not only ensures an IP65 rating, but also enables silent operation for sound sensitive environments such as theatre or television.

The Stick fixtures feature FUSION’s SteadyColor™ technology which allows color mixing through the RGBW LED’s to remain exact through all dimming levels removing the possibility of color shifts and the need for single color correction.

Additionally The Stick fixtures feature the uniquely designed ConsistentColor™ optic which creates the perfect balance of output and homogeneity, producing high quality light output without coronas or color shifts.

No matter what the application the FUSION Stick is the right choice.

Technical data

LIGHTSOURCE

  • 20x 15W RGBW LED’s
  • 20,000 lifetime hours

POWER

  • 100-240 VAC/50-60hz
  • Auto ranging electronic switch-mode
  • Max. 330W @ 230V

OPTICAL SYSTEM

  • 6° beam angle

EFFECTS

  • 0-100% electronic dimmer
  • Regular and random strobe
  • Pulse effects
  • Selectible dimmer curves

CONTROL

  • 4 button OLED display
  • USITT DMX 6512-A
  • Wireless lumenradio CRMX optional DMX/RDM
  • 8 control modes

OPERATION CONDITIONS

  • Temperature overheating protection
  • 113°F (45°C)
  • IP65

CONNECTORS

  • XLR 5-pin
  • Neutrik powerCON True1

MOUNTING OPTIONS

  • 1 eyelet for safety wire attachment
  • M10 screw thread

DIMMENSION & WEIGHT

  • FS20

        Height including bracket: 231 mm / 9.09 ins.
        Height without bracket: 181 mm / 7.12 ins.
        Width: 90 mm / 3.54 ins.
        Depth: 1006 mm / 39.60 ins.)
        Weight: 12.5 kg (27.6 lbs.)
