KNV DOT

A multi functional fixture, the KNV Dot takes the concept of physical flexibility and combines it with the raw power of the KNV system. Able to run individually, or combined together, this new addition to the KNV system is the perfect answer for small, compact locations right up to large format design integration.

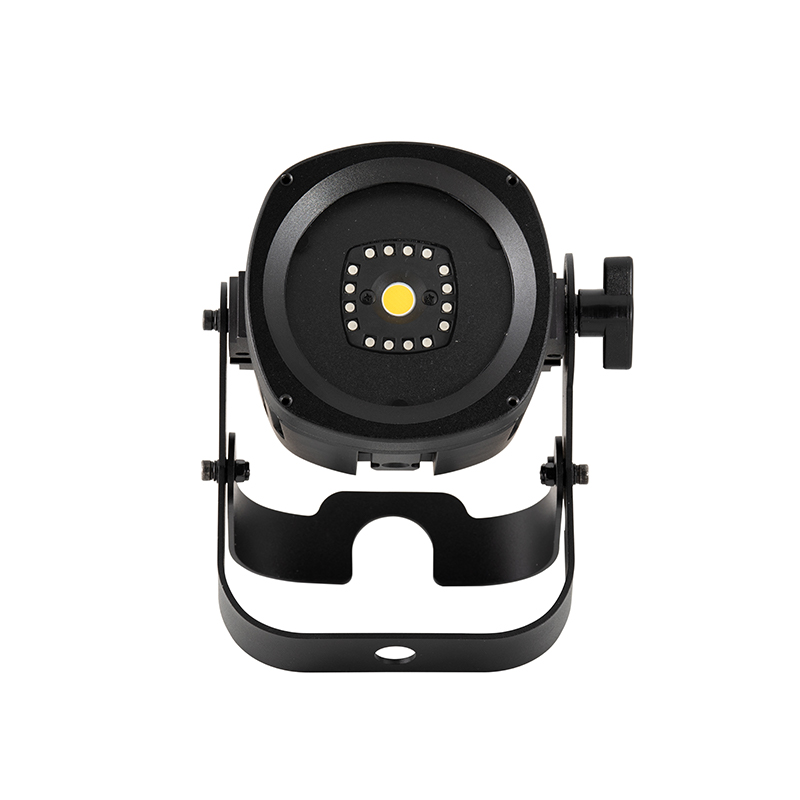

The KNV Dot is a singular pixel source containing a super bright white LED, encircled by 16 RGBW LED’s with full color mixing capability and a powerful output for a smaller point source. Independent control over both the white LED’s and the RGB LED’s, allows for the creation of a vast array of effects,  with both a full color pallet and added punch when you need it.  It is both compact and lightweight allowing it to be placed in the smallest spaces, and easily built into set pieces and staging risers. The KNV Dot is also perfect to hang in locations where multiple units are required for greater coverage, but without breaking the bank.

The KNV Dot housing includes built in mounting brackets of the same size and design that are used with the X4 atom fixture, allowing seamless integration with any X4 atom units. The KNV Dot can easily be mounted individually, and benefits from a wealth of X4 atom mounting accessoriesthat are already available in the market. The KNV Arc and Cube connect together seamlessly and the KNV Dot compliments this matching the size of a cube in a 3×3 configuration.

The KNV system has an immense output when combining its elements, with each KNV Dot unit capable of producing 2,000 lumens, and a full size KNV Cube producing more than 50,000 lumens. Utilizing its power to the max, the fixture has been designed to output continuously at full output. Creating the brightest blinder and wash light effects, without ever thermalling out or reducing its output level.

All fixtures in the KNV system are IP54 rated. Ready for those outdoor summer festivals and all the rain they traditionally bring. But not only that, the IP54 rating allows the units to be used on events year round, in even the toughest of weather conditions.
The KNV Dot and KNV Line fixtures are powered from an external power supply reducing the size and weight of each unit and increasing their ability to be placed in the tiniest, tucked away locations. The Dot units are daisy chained using industry standard 4 pin XLR cables that carry both the power and data signals.

Each power supply unit can run up to 25 pixels, with any combination of KNV Line or KNV Dot fixtures able to connect together, up to the maximum pixel count.

Whether used as a stand alone or combined with other KNV fixtures, the KNV Line and KNV Dot offer some powerful design options in a multitude of applications.

The KNV system from GLP; a new mighty powerhouse.


technical data

POWER

  • External KNV PSU
  • Max fixture count: 25 KNV Dot fixtures
  • (Watt @ 230V): 800 W
  • Power-Data cable EN3

CONNECTORS

  • Power: Neutrik True1 input and output
  • Data: Neutrik Ethercon input and output

LIGHT SOURCE

  • 1 hyper bright 30 watt, white LEDs, surrounded by 16 RGB LEDs
  • 2,200 lm

CONTROL

  • Protocols: DMX 512, ArtNet, sACN
  • Mode (TBC): 10, 17, 37, 83, 29, 102, 202
  • Variable PWM, up to 38khz

 EFFECTS

  • 16 bit RGBW color
  • 16 bit electronic dimming
  • Variable strobe: intensity, flash rate, flash duration
  • 3 layer FX engine

OPERATING CONDITIONS

  • IP54 rated
  • Maximum ambient temperature: 115°F (45°C)
MOUNTING OPTIONS
  • Floor stand
  • Hanging bracket
  • Any orientation
  • Frameless design allows units to be seamlessly coupled together.
SHIPPING
  • Cardboard box
  • Flight cased tourpack
HOUSING COLORS
  • Standard color is black
  • For other colors please contact sales department
DIMENSIONS
  • (L x W x H)
     KNV Dot: 3.1″ x 3.86″ x 3.86″ (7.8 cm x 9.8 cm x 9.8 cm)
     KNV Line: 6.5″ x 9.84″ x 1.97″ (16.5 cm x 25 cm x 5 cm)
     KNV Cube: 7.2″ x 9.8″ x 9.8″  (18.3 cm x 25 cm x 25 cm)
     KNV Arc: 7.1″ x 15″ x 10.5″ (18 cm x 38 cm x 26.6 cm)

NET WEIGHT
  • KNV Dot: 1.43 lbs (0.65 kg)
  • KNV Line: 3.97 lbs (1.8 kg)
  • KNV Cube: 20.5 lbs ( 9.3 kg)
  • KNV Arc: 21.3 lbs (9.7 kg)
